User Interface
Mockups
MultiEntity TreeView
Version 3
Access from Tree Buttons in Quality Column
Tree Display and Query Refinement
Version 2

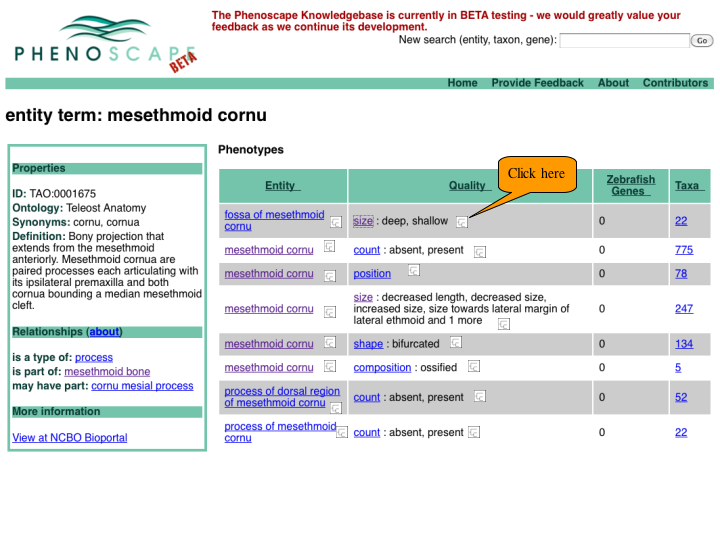

Access from Tree Buttons in Quality Column

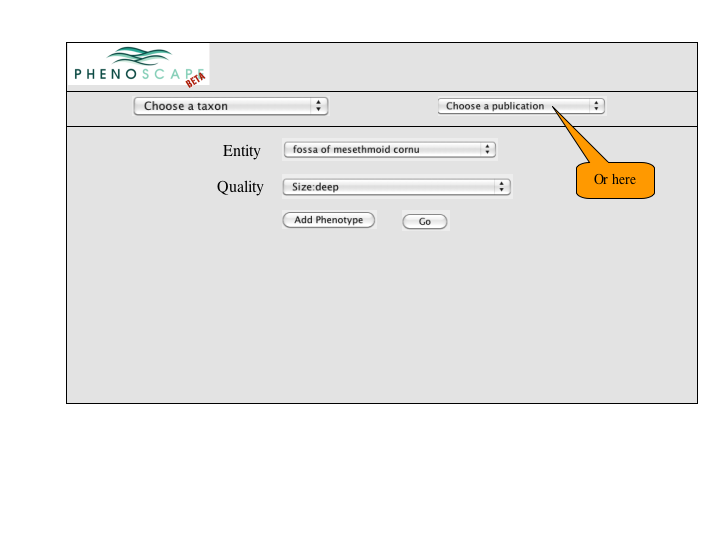

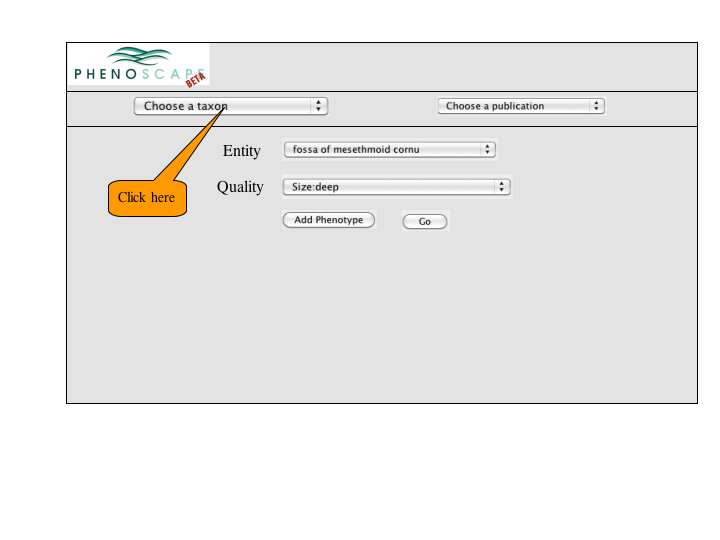

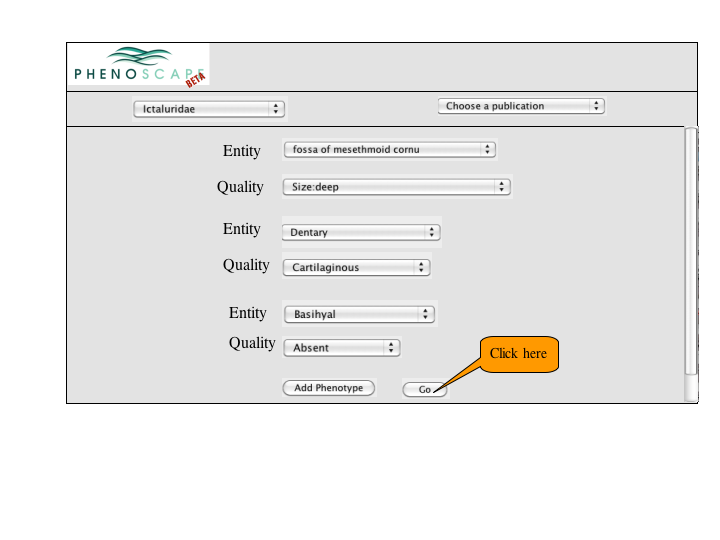

Multiple Phenotype Selection Panel

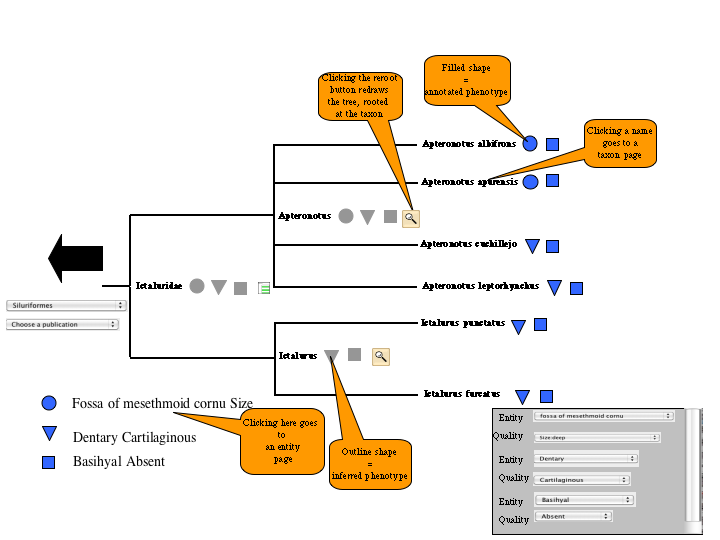

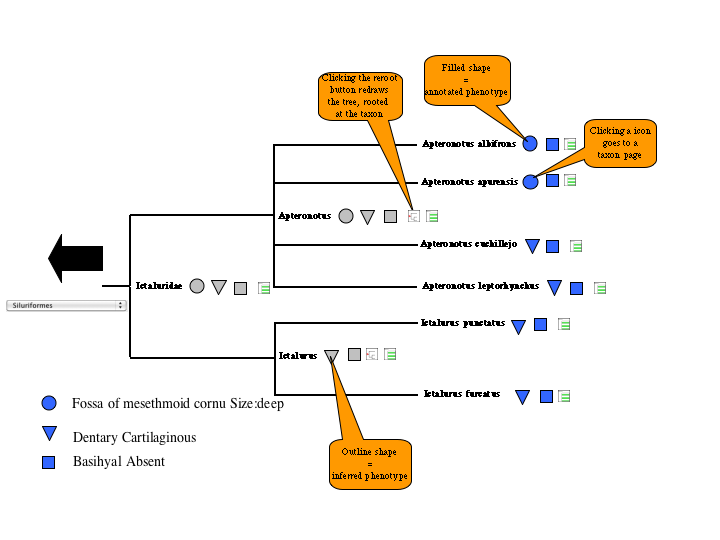

Tree Display
Version 1
Version 0
user can enter phenotype specification for each “state”
see on tree which branches exhibit one or both of the phenotypes
Do users want the tree “pruned”? Or show branches without annotations also? could be a lot of taxa
Same interface
shows that the 2 phenotypes don’t have to be obvious alternatives

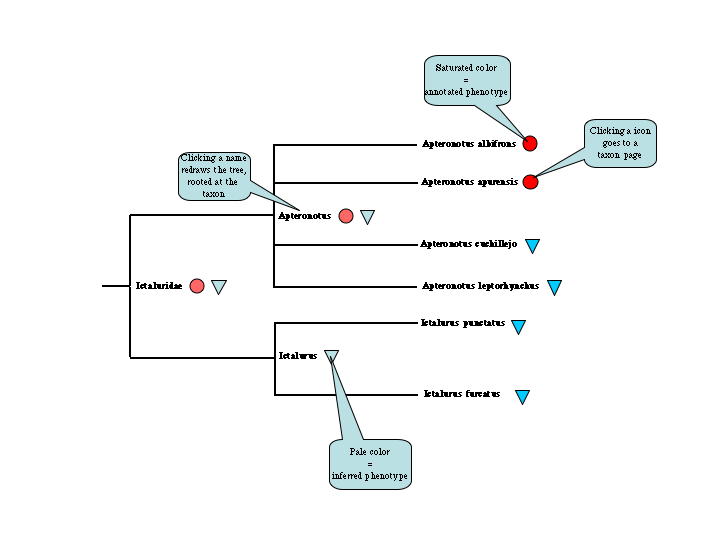

Map phenotypes of a given entity on tree
