The vision of this project is to develop an application that will allow
data curators to use new ontology terms without creating a workflow
bottleneck.
Background
There is a need for applications that will expedite the annotation of
phenotypic characters using ontologies and also promote community
participation in the expansion and refinement of ontologies. One
particular need that has arisen within Phenoscape and other projects is
for an Ontology Request Broker (ORB), an application that can launch new
ontology term requests within existing data curation workflows, record
term provenance and community discussion, enable temporary terms to be
used in data annotation, and update temporary terms once a request has
been resolved.
Scope
Here is a documentation of ORB term request service. ORB will be
accessible via an online interface and programmatically through RESTful
web-services.

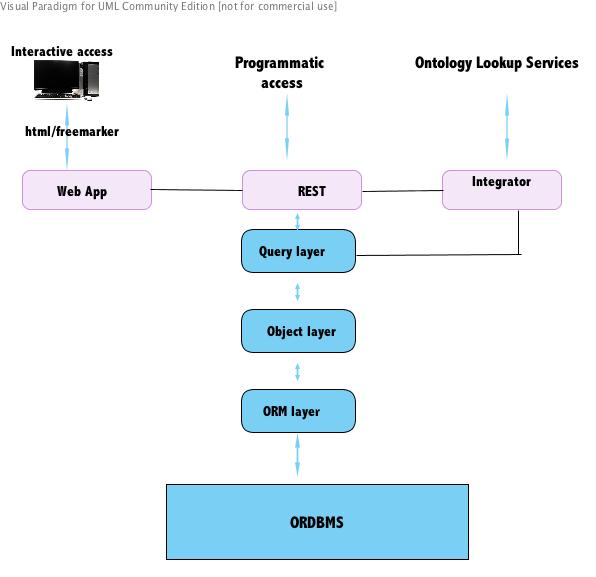

ORB architecture overview
Use cases
Case:Place a term request within an ontology annotation
application
Brief: One of the key challenges in ontological data annotation is
placing a new term request.During annotation, a user normally has to
switch from his/her annotation platform/application ( for
examplePhenex) to a different
URL (such as sourceforge based term tracker) to place a request. This
poses a bottleneck to efficient data annotation especially in
large-scale projects. An annotator working with an annotation
application integrating ORB’s submit term request service, can submit a
new request and receive a temporary ID to work with before the requested
term is assigned an official ontology ID.
Actor: annotator of data using ontology terms
Pre-condition: -The antology annotation application being used is
integrated to ORB’s submit term request service
Ideal path The process is initiated when the user initiates new term
request within the annotation application
A GUI for term submission is generated
User completes the term submission fields
User clicks on the submit button
ORB validates the request
ORB informs the user of successful term submission and provides a
temporary ID(referred to as ORB ID) assigned to the term
Adds the new request to the database
Invalid path : This occurs when the user submits an invalid request
ORB alerts the user that the request is invalid
ORB return the term submission GUI with the invalid field(s)
highlighted
Case:Get term from the ontology annotation application
Brief: After placing a term request, a ontology annotator would like to
find out if the term has been resolved (i.e assigned the correct name
and ontology ID).
Actor: ontology annotator
Pre-condition -The antology annotation application being used is
integrated to ORB’s get term via orb ID service. Ideal path The process
is initiated when the user initiates get term via ORB ID within the
annotation application
A GUI for inserting the ORB ID is generated
User inserts the ID
User clicks on the submit button
ORB validates the request
ORB informs user that the term has been resolved and returns the
resolved term’s name, ontology ID, definition plus other related
information
Alternative paths:
If the term is still pending
ORB informs the user that the term is still pending and returns the
term’s name, ORB ID plus any other updates relating to the term
If the term is obsoleted
ORB informs user that the term has been obsoleted and returns the
suggested correct ontology term if one exists
ORB also returns any comments that may give a clue to the user why
the term was obsoleted
If a term matching the ORB ID is not found
ORB informs user that no match was found
ORB suggests to the user to verify if the ORB ID provided was
correct an if he/she wants to re-submit another ORB ID
Case:Register
Brief: This is a use case for creating an account in ORB
Actor:ORB user
Pre-condition: The user is at the ORB site
Ideal path The process is initiated when the user selects the
registration link
ORB presents the registration page
User provides required fields(e-mail,name, password and country)
User submits his/her information
ORB verifies the request
ORB informs the user of successful registration and provides an
activation link
ORB sends the registration information to the user’s e-mail account
Alternative path Invalid request: This occurs when a user submits a
request with missing required information
The steps 1 to 4 in the ideal path apply
ORB terminates the registration
ORB returns to the registration page with the missing field
highlighted
Invalid e-mail address: This occurs when a user provides an invalid
e-mail address
The steps 1 to 4 in the ideal path apply
ORB terminates the registration
ORB informs user the e-mail address is invalid
ORB returns the registration page
Case:SubmitTerm
Brief: This is a use case for submitting new ontology term requests.
Actor: TermRequester
Pre-conditions: The requester must be at the ORB website and has an
account
Ideal path:
This use case is initiated when the requester clicks on the term
submission tab
ORB presents the user login page for the requester to fill in the
name and password
ORB verifies the requester
ORB displays the term submission page
Requester provides the required fields(i.e term’s name, parent,
textual definition,target ontology) plus any additional information
related to the term (i.e other relations, references, database cross
references, comments etc) and submits
ORB verifies the submission
ORB assigns a temporary ID to the term and presents it the requester
ORB sends the requested term’s temporary ID and other details to
requester’s e-mail account
ORB returns to the term submission page
Alternative paths:
Invalid request: This occurs if the user submits a request without the
required fields
Steps 1 to 6 as described in the ideal path will apply
ORB will the terminate the request
ORB will return to the term submission page with the missing
required field highlighted
Matching term found: This occurs when the requested term already exists
in the targetted ontology
Steps 1 to 6 as described in the ideal path will apply
ORB returns a message informing the requester that the term exists
ORB returns the matching term’s id, name and parent to the requester
Case: EditTerm
Brief: This is a use case for editing requested term
Actor: TermRequester and OntologyGateKeeper
Pre-conditions
The term exists in ORB database
The term has not been resolved
The term editor is at the specific term’s page
Ideal path: This case is initiated when the
TermRequester/OntologyGateKeeper selects the “edit term” link
ORB presents the user login page
User provides their name and password
ORB verifies the user
ORB presents the term with the editable fields
User makes any changes and submits
ORB verifies the changes made
ORB updates changes
ORB informs user of successful update
ORB displays the term plus the new changes
Alternative paths:
User not registered
Steps 1 to 3 as described in the ideal path apply
ORB terminates the process
ORB informs the user that they are not registered or need to try
again in case of misspelled login details
ORB presents the ORB registration page
User neither the requester of the term nor gatekeeper for the target
ontology
Steps 1 to 3 as described in the ideal path apply
ORB terminates the process
ORB informs the user that they need to be the term’s requester or
ontology gatekeeper to edit the term
ORB returns to the term page
Case:ChangeTermStatus
Brief: This is a use case for changing the status a term submitted
Actor: OntologyGateKeeper
Pre-condition: The user is at the specific term page
Ideal path This case is initiated when the user,selects the “change term
status” link
ORB presents the user login page
User provides their name and password
ORB verifies the user
ORB presents the term with the editable status fields
User selects the new status and submits
ORB updates changes
ORB informs user of successful update
ORB displays the term plus the updated status
Alternative paths
Invalid OntologyGateKeeper
Steps 1 to 3 as described in the ideal path will apply
ORB terminates the request
ORB informs the user that they aren’t the ontology gatekeeper or
they may try again in case of misspelled login information
ORB returns to term page
Resolved term status: This applies when a term has already been resolved
and assigned a permanent ID
Steps 1 to 3 as described in the ideal path will apply
ORB terminates the request
ORB informs the user that the term has been resolved
ORB returns to the term page
Case:BrowseTerms
Actor: CasualUser
Brief:This is a case for user who is navigating the ORB site
Pre-Condition:
The user is online at the ORB site
Ideal path
The user selects the “browse terms” link
ORB displays the ORB browse term page
User selects whether to view all terms or based on status
ORB displays the terms name , ID , target ontology, status and a
link to the terms page
Alternative paths:
Case: DownloadTerms
Brief: Use case for downloading terms
Steps 1 to 4 as described in the ideal path apply
User selects the terms to be downloaded
User selects the download tab
ORB generates a text file containing the terms in OBO format
ORB returns to the page displaying downloaded terms
Download a term: Applicable when user wants to download a single term
The steps 1 to 4 as described in the ideal path apply.
User selects the term page link
ORB displays the term page with all the term’s information
User selects the term download tab
ORB generates a file containing the term in OBO format
ORB returns to the term’s page
Case: SearchTerm Brief: A case for user to search for a term
Ideal path:
User selects the search term link
ORB displays the term search page
User provides the term name or id or parent
User selects the submit button
ORB returns a term with the name,synonyms or id matching the
information provided in step 3
Alternative path:
No term matching the search
Steps 1 to 3 as described in the ideal path apply
ORB returns a term not found message
Case: Comment
Pre-condition: User is at the specific term’s page
Ideal path
User selects the “comment on term” link
ORB provides a page for submitting a comment
User provides comment in the term comment field
User provides name and e-mail
ORB validates the user e-mail
User submits the comment
ORB generates a comment submission success message
ORB returns to the term page
Alternative path
User e-mail invalid
Steps 1 to 5 as described in the ideal path apply
ORB terminates the comment submission process
ORB informs user about the invalid e-mail address
ORB returns to the term comment submission page
Case: DevelopOrb
Actor: Developer
Brief: This is a case for users who have skills in application
development and are interested in developing ORB further
Pre-conditions:
Ideal path:
Alternative paths:
Case:IntegrateOrb
Actor : Developer
Brief: This is a case for users who have skills in application
development and are interested in integrating ORB into existing
application e.g to form a workflow.
Pre-conditions:
Ideal path:
Alternative path:
Non-functional requirements
Accessibility
ORB will have a web interface for easy access via browsers
It will also have REST-style web service for programmatic access
The prototype will be integrated into
Phenex as a demonstration of
an interfaceable API.
Support
A comprehensive documentation on ORB’s functions(how
to..),implementation and help pages
-To obtain the complete and latest version of the applications source,
visit the SVN
link
-Download the project all files
Build
-Run the ant based build file to generate the orbprototype.war
file
Database
-Get the DDL scripts from the build step depending on the kind of DBMS
your are using e.g. for PostgreSQL, use ddl_postgres.sql. -Create a
database withing your DBMS with the parameters below:
-Run the DDL script chosen above within the SQL interface or on command
line to create all the database tables and sequences.
Establish connection to the database

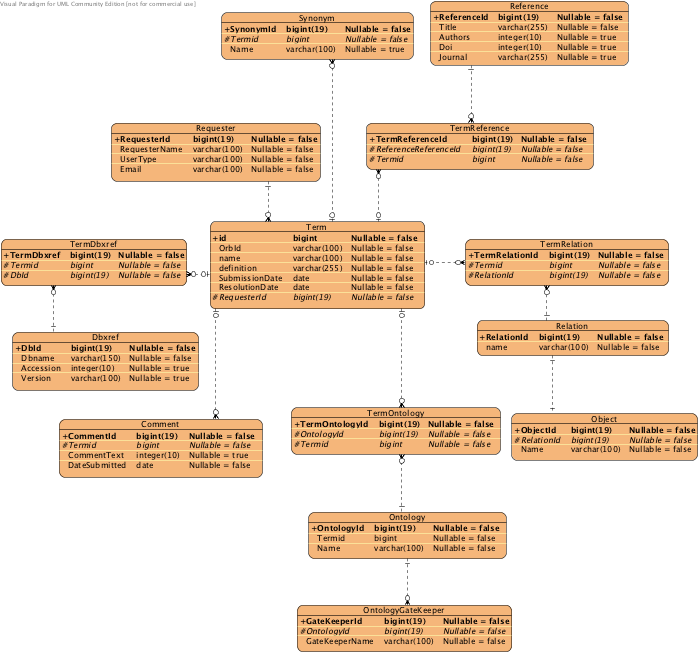

ORB database Entity-Relation(ER) diagram
Services
Here is a list of all the web-services provided by ORB. The base URI
(represented as, in the services URIs) is: /orbprototype/
Get all terms in html format
Type :html
Protocol : HTTP GET
URI :terms/?media=html
Output :User requested terms in html format
Example
GET /orbprototype/terms/?media=html HTTP/1.1
Get all terms in xml format
Type :xml
Protocol : HTTP GET
URI :terms/?media=xml
Output :User requested terms in xml format adhering to the terms
XML
schema
Example
GET /orbprototype/terms/?media=xml HTTP/1.1
Get all obsoleted terms in htm format
Type :html
Protocol : HTTP GET
URI :terms/obsolete/?media=html
Output :All users requested terms that have been obsoleted in
HTML format
Example
GET /orbprototype/terms/obsolete/?media=html HTTP/1.1
Get all obsoleted terms in xml format
Type : xml
Protocol : HTTP GET
URI :terms/obsolete/?media=xml
Output :All users requested terms that have been obsoleted in xml
format adhering to the terms XML
schema
Example
GET /orbprototype/terms/obsolete/?media=xml HTTP/1.1
Get all terms from an ontology with an ontology_identifier in HTML format
Type : html
Protocol : HTTP GET
URI :terms/ontology/{ontology_identifier}/?media=html
:Note: The {ontology_identifier}refers to either the name or prefix of
an ontology e.g Teleost Anatomy Ontology (name) or TAO (prefix)
Output : All requested terms with the provided ontology as their
target in html format
Example
GET /orbprototype/terms/ontology/TAO/?media=html HTTP/1.1
Get all terms from an ontology with an ontology_identifier in xml format
Type : xml
Protocol : HTTP GET
URI :terms/ontology/{ontology_identifier}/?media=xml
Note: The ontology_identifier can either be a name or prefix of an
ontology
Output :All requested terms with the provided ontology as their
target in xml format adhering to the terms XML
schema
Example
GET /orbprototype/terms/ontology/TAO/?media=xml HTTP/1.1
Get all pending terms in html format
Type : html
Protocol : HTTP GET
URI :terms/pending/?media=html
Output :All users requested terms that are pending in html format
Example
GET /orbprototype/terms/pending/?media=html HTTP/1.1
Get all pending terms in xml format
Type : xml
Protocol : HTTP GET
URI :terms/pending/?media=xml
Output :All users requested terms that are pending in xml format
adhering to the terms XML
schema
Example
GET /orbprototype/terms/pending/?media=xml HTTP/1.1
Get all terms in html format using publication_identifier
Type : html
Protocol : HTTP GET
URI :terms/publication/{publication_identifier}/?media=html
Note: The publication_identifier can be a publication’s DOI or title
Output :All requested terms with the provided publication as
their reference in html format
Example
GET /orbprototype/terms/publication/test/?media=html HTTP/1.1
Get all terms in xml format using publication_identifier(publication’s DOI or title)
Type : xml
Protocol : HTTP GET
URI :terms/publication/{publication_identifier}/?media=xml
Output :All requested terms with the provided publication as
their reference in XML format adhering to the terms XML
schema
Example
GET /orbprototype/terms/publication/test/?media=xml HTTP/1.1
Get all terms in HTML format requested by {requester_identifier}
Type : html
Protocol : HTTP GET
URI :terms/requester/{requester_identifier}/?media=html
Note : The requester_identifier is a text which could be the requester’s
name or e-mail
Output : A list of terms matching the requester identifier
provided in html
Example
GET /orbprototype/terms/requester/test/?media=html HTTP/1.1
Get all terms in xml format requested by {requester_identifier}
Type : xml
Protocol : HTTP GET
URI :terms/requester/{requester_identifier}/?media=xml
Note: The requester_identifier is a text which could be the requester’s
name or e-mail
Output :A list of terms matching the requester identifier
provided in xml adhering to the terms XML
schema
Example
GET /orbprototype/terms/requester/test/?media=xml HTTP/1.1
Get all resolved terms in html format
Type : html
Protocol : HTTP GET
URI :terms/resolved/?media=html
Output : A list of all resolved terms in html format
Example
GET /orbprototype/terms/resolved/?media=html HTTP/1.1
Get all resolved terms in xml format
Type : xml
Protocol : HTTP GET
URI :terms/resolved/?media=xml
Output : A list of all resolved terms in xml format adhering to
the terms XML
schema
Example
GET /orbprototype/terms/resolved/?media=xml HTTP/1.1
Get top terms in html format
Type : html
Protocol : HTTP GET
URI :terms/top/?media=htm
Output : A list of 10 (or less) terms with the highest number of
comments in html format
Get top terms in xml format
Type : xml
Protocol : HTTP GET
URI :terms/top/?media=xml
Output :A list of 10 (or less) terms with the highest number of
requests in xml format adhering to the terms XML
schema
Get all trial terms in html format
Type : html
Protocol : HTTP GET
URI :terms/trial/?media=html
Output : A list of all trial terms in html format
Example
GET /orbprototype/terms/trial/?media=html HTTP/1.1
Get all trial terms in xml format
Type : xml
Protocol : HTTP GET
URI :terms/trial/?media=xml
Output : A list of all trial terms in XML format adhering to the
terms XML
schema
Example
GET /orbprototype/terms/trial/?media=xml HTTP/1.1
Get Term in XML format
Type : XML
Protocol : HTTP POST
URI :terms/{orb_id}/?media=xml
Output : A term matching the orbid provided in the variable
{orb_id} in xml format
Example
GET
/orbprototype/terms/ORB:5bfba0d4-de9b-47ce-adb7-9c9ebc2ae359/?media=xml
HTTP/1.1
Get Term in HTML format
Type : html
Protocol : HTTP POST
URI :terms/{orb_id}/?media=html
Output : A term matching the orbid provided in the variable
{orb_id} in html format
Example
GET
/orbprototype/terms/ORB:5bfba0d4-de9b-47ce-adb7-9c9ebc2ae359/?media=html
HTTP/1.1
Post term via a web form
URI : /orbprototype/terms/?postterm=true Input :
Web form containing all the term input fields as found in this
pdf file
1
Output : A term post success message in html format
Post term in XML format
URI : /orbprototype/terms/?media=xml Input :
Term in XML format adhering to the term(s) to post
schema
Output : A term post success message in XML format
Samples of new term requests
1. New term request with required elements only
POST /orbprototype/terms/?media=xml HTTP/1.1 <source lang=xml
adult alar plate6Wing-shaped sclerotized plates for
support of muscles controlling the action of the pharyngeal valve,
Muscle bundles extendfrom the alae to the subcheliceral plate (epistome)
and from the alar surfaces to the ventral side of the basis capituli.
Dilator muscles of the pharynx also attach to the alar plates. Operation
of the anterior pharyngeal valve is accomplished by the contractionof
the dilator muscles inserted on the wing-like alae, thereby raising or
lowering the v-shaped wedge. When the wedge is raised,fluid is taken up,
when lowered, it projects down into the v-shaped valve, sealing it and
prevents backflow.test
relationship type name test
relationship to property valueTeleost Anatomy and
DevelopmentTAOtest requester name username@ymail.com
</terms>
</source>
2. New term request with all term elements
POST /orbprototype/terms/?media=xml HTTP/1.1 <source lang=xml
adult alar plate7Wing-shaped sclerotized plates for
support of muscles controlling the action of the pharyngeal valve,
Muscle bundles extendfrom the alae to the subcheliceral plate (epistome)
and from the alar surfaces to the ventral side of the basis capituli.
Dilator muscles of the pharynx also attach to the alar plates. Operation
of the anterior pharyngeal valve is accomplished by the contractionof
the dilator muscles inserted on the wing-like alae, thereby raising or
lowering the v-shaped wedge. When the wedge is raised,fluid is taken up,
when lowered, it projects down into the v-shaped valve, sealing it and
prevents backflow.<ISBN:0-19-505910-7>test
relationship type name test
relationship to property valueTeleost Anatomy and
DevelopmentTAOAnatomy and Developmenttest gatekeeper
nametest
gatekeeper@ymail.comPendingtest requester name test requester@ymail.comtest synonymtest synonym scopetest
synonym typetest
synonym dbxref nametest
synonym dbxref accessionFig. 7-5; Fig. 7-9; in Biology of Ticks
<ISBN:0-19-505910-7>.Test titletest doitest
journaltest term dbxref nametest term dbxref accessiontest xref analog
nametest xref
accession
</terms>
</source>
Project plan
An agile approach will be used in ORB development. The sign √ indicates
accomplished tasks while * indicates tasks which ought to have been
implemented but haven’t been
Week 1: 4 to 9 January, 2010 To review the ORB project, suggest any
changes in light of existing technologies from literature review and
input from the team and document the (including the changes).
Revise the ORB project plan and milestones√
Identify a suitable citation management tool and learn how to utilize
it√
Perform a comprehensive literature search and read the relevant papers
and add to the ORB literature review√
Week 2: 10 to 16 January, 2010 Complete literature review, document
and discuss with project team
Perform further literature search, read and complete literature
review√
Document the project requirements (technologies to be used,
architecture, behavior) in the project wiki√
Hold an online meeting with NESCent team about progress and ORB
implementation based on literature review and existing technologies√
Week 3: 17 to 23 January, 2010 Document ORB requirements and
specification based on input from literature, discussion and research
Revise the ORB requirements, specification and document it to the
wiki√
Week 4: 24 to 30 January, 2010 Revise, design and implement ORB data
layer based on existing technologies, input from project team and
implement the database.
Design and implement the ORB database
Document the ORB database schema
Week 5: 31st January to 6th February 2010 Design and implement ORB
Application layer
Identify and document the role of each server application
Start implementing/coding the application layer
Week 6: 7 to 13 February, 2010 Continue implementing the application
layer plus the unit test
Continue implementing the application layer and unit tests
Week 7: 14 to 20 February, 2010 Continue implementing the
application layer plus the unit test
Continue implementing the application layer and unit tests
Week 8: 21 to 27 February, 2010 Continue implementing the
application layer plus the unit test
Continue implementing the application layer and unit tests
Week 9: 28th February to 6th March 2010 Continue implementing the
application layer plus the unit test
Continue implementing the application layer and unit tests
Week 10: 7th to 13th March 2010 Start working on the ORB user/client
interface
Identify and describe the user/client interface
Begin implementing the user/client interface
Week 12: 21st to 27th March 2010
Continue working on the user/client interface
Week 13: 28th March to 3rd April 2010
Continue working on the user/client interface
Week 14: 4th to 10th April 2010
Continue working on the user/client interface
Week 15: 11th to 17th April, 2010
Continue working on the user/client interface
Week 16: 18th to 24th April, 2010
Continue working on the user/client interface
Week 17: 25th April to 1st May 2010 Complete the ORB application
Assemble all the ORB components and have a complete software
Refine the code implementation and fix any bugs
Week 18: 2nd to 8th May 2010 Refinement and fix bugs
Continue fixing bugs
Week 19: 9th to 15th May, 2010 Begin deployment
Deploy ORB to a publicly accessible server
Document ORB server
Week 20: 16th to 22nd May, 2010
*To be added
Week 21: 23rd to 29th May, 2010
*To be added
Week 22: 30th to 31st May, 2010
Meetings
Jan 19, 2010 (notes by Mtakai)
Present
Paula Mabee
Hilmar Lapp
Wasila Dahdul
Jim Bahloff
Peter Midford
Mtakai Ngara
Agenda
ORB requirements
Working modalities
Minutes
ORB will be accessible via browsers and programmatically as REST web
services.
Term requester and Ontology gatekeepers must create an account at
the site.
A function to allow for submission of a term to multiple ontologies
would useful.
Apart from term submission, definition revision, term obsoletion and
graph placement should be implemented.
The users are categorized as:requester, ontology
gatekeeper,developers, casual user and the community at large. A
casual user need not register at the site.Visit
requirements
section for details on each of the users’ role(s).
Function for uploading a file and downloading terms to be
implemented
Have a section within ORB site for updates on latest acivities
Integrate ORB into phenex
Host the ORB project at sourceforge on it’s page
Have a mechanism of checking if a term already exists in an ontology
Communication via e-mail
ORB meetings after each use case implementation
Code will be shared via subversion repository for team review
Action items
Contact the Berkley group (BBPO) on ORB trial
Have screen shots of ORB uploaded in the wiki to demonstrate
functionality
Links & Resources
Early and incomplete ORB implementation in
Perl
by Seth Carbon. This interfaces directly with the SourceForge tracker.
